“Cstream-1” High-performance Ultra-small Turgo Turbine Generator Products for organizations, companies
Also recommended for

Municipality

Volunteer disaster prevention organization

Business entity

Household

Certification Number for Disaster Prevention Related Products

27 高知防産第 4 号


Independent accumulator-type small hydraulic power generation system Most suitable as reserve power supply in a disaster !

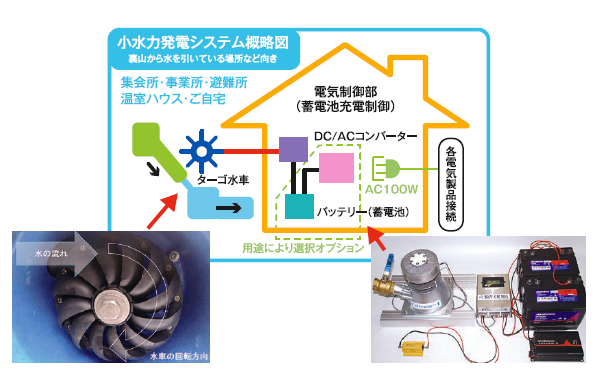

The product is a high-performance ultra-small turgo turbine generator performing power generation by rotating a water turbine dynamo with hydraulic force. It has the characteristic that the rotation energy of the turgo turbine is converted efficiently to electricity by the inner-rotor coreless generator and the electric control section giving a charge of electricity to a storage battery at the maximum electric power. When a general electric apparatus is used, the electricity converted from the storage battery to 100V AC by the inverter will be used.

Output Power: 200W Max. Output Voltage: 240VDC
Outer Diameter (Body): 240mm W x 240mm D x 258mm H
Water-Guide Pipe: 40 dia. (1 1/2”)

Cool Island CO., LTD.

Address 〒788-0302 Hiromi 1471-2, Ootsuki-cho, Hata-gun, Kochi Prefecture, Japan
Phone number/Fax number
0880-73-0126
/
0880-73-0126

Email address info@cool-island.com
Homepage URL http://cool-island.com/
