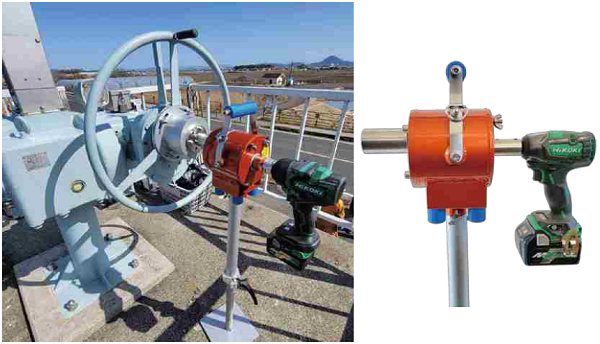

Portable Electric Sluice Gate Hoist OPROLE
Also recommended for

Certification Number for Disaster Prevention Related Products6 高知防産第 5 号
Easy for anyone to use – A revolution in sluice gate opening and closing operations!
Solving problems that only those who’ve experienced them can understand: the heavy labor of opening and closing sluice gates, weir gates for rivers and waterways, and gates for dams, water supply, and sewerage facilities. It’s a long, arduous task. “Who’s going to do that?” OPROLE will take care of it!

Prepare

YOKOGAWA IRON WORKS CO., LTD.

Also recommended for
Adopted/Purchased by

Japan Water Agency Lake Biwa Development Integrated　Operation & Maintenance Office, Tokyo Electric Power Company Nakatsugawa No. 1 Power Plant, Mie Prefecture Hokusei Drainage Office, Saitama Prefecture Comprehensive Flood Control Office, Osaka City Construction Bureau Johoku Pumping Station, Kochi Prefecture Aki Civil Engineering Office

InquiriesE-mail

Further information can be accessed through this QR code.

  • Significant reduction in labor: Operating time is approximately 1/4 (manual operation is typically 30 rpm, while OPROLE operates at 115 rpm)
  • Low cost: By installing attachments on sluice gates that could not be motorized due to cost constraints, this single unit can easily motorize multiple sluice gates
  • Can be used as auxiliary power for sluice gates that are already motorized
  • Excellent portability, and maintenance only requires charging

Body dimensions: 280 mm W×182 mm D×270 mm H
Weight: 5.25 kg
With impact wrench attached: 435 mm W, weight approximately 8 kg
Stand: ST2-6090 (3.25 kg), ST3-6012 (3.85 kg)
Operating speed: 30 to 115 rpm
